RX-Eagle Drone
The RX-Eagle Drone is a UAV based RF measurement solution. It frees your RF measurements from gravity and raises your measurement possibilities to another level. This drone opens up completely new perspectives in interference hunting, antenna characterization, inspection of RF installations, RF leakage search and RF signal mapping. The UAV platform provides the complete support for preparation, execution and post processing of measurement tasks. Due to its high level of integration of UAV, measurement system and control software, all tasks can be easily managed by one person.
Technical Data
Spectrum Analyzer:
- Frequency range: 1 MHz – 6 GHz
- Noise level: -135 dBm
- Maximum input level: -5 dBm (LNA on)
- Maximum input level: +10 dBm (LNA off)
- Sample rates: 2 Ms/s to 20 Ms/s
- Resolution: 8 bits
- Real time bandwidth: up to 20 MHz (local)
- Real time bandwidth: up to 2 MHz (streaming to ground station)
- Scanning speed: up to 8 GHz/s

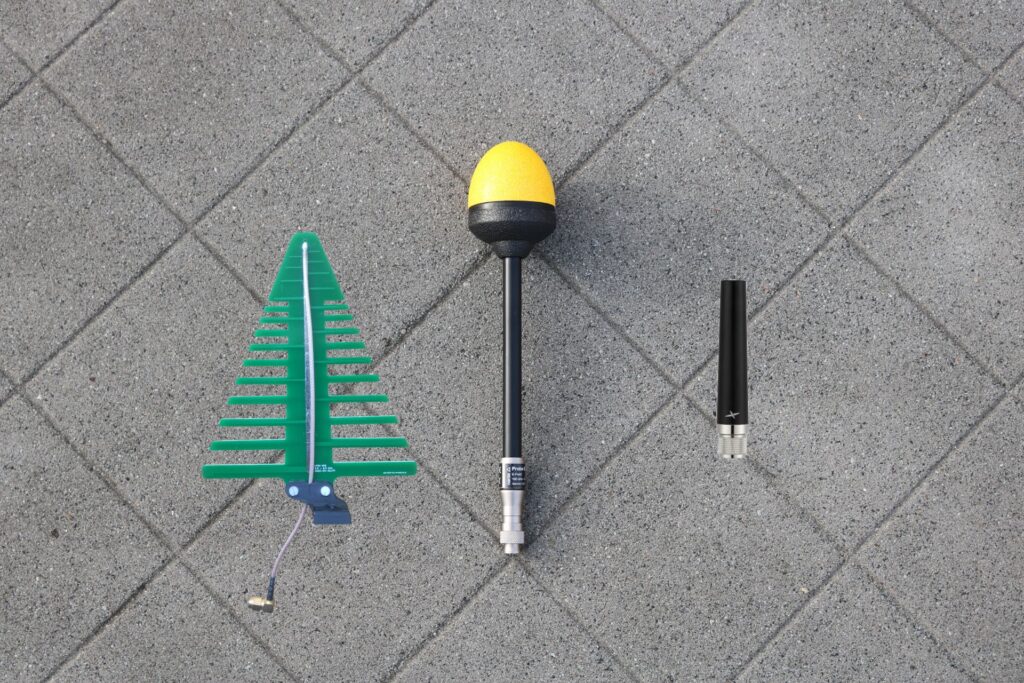

Antenna:
- Type: Logarithmic periodic antenna
- Polarization: Vertical or horizontal, depends on mounting
- Frequency range: 700 MHz – 6 GHz
- Gain: > 5 dBi
- Directivity: > 6 dB
- Other antennas: on request
Camera:
- Resolution: 5 MP
- Viewing angle: 75,7 °

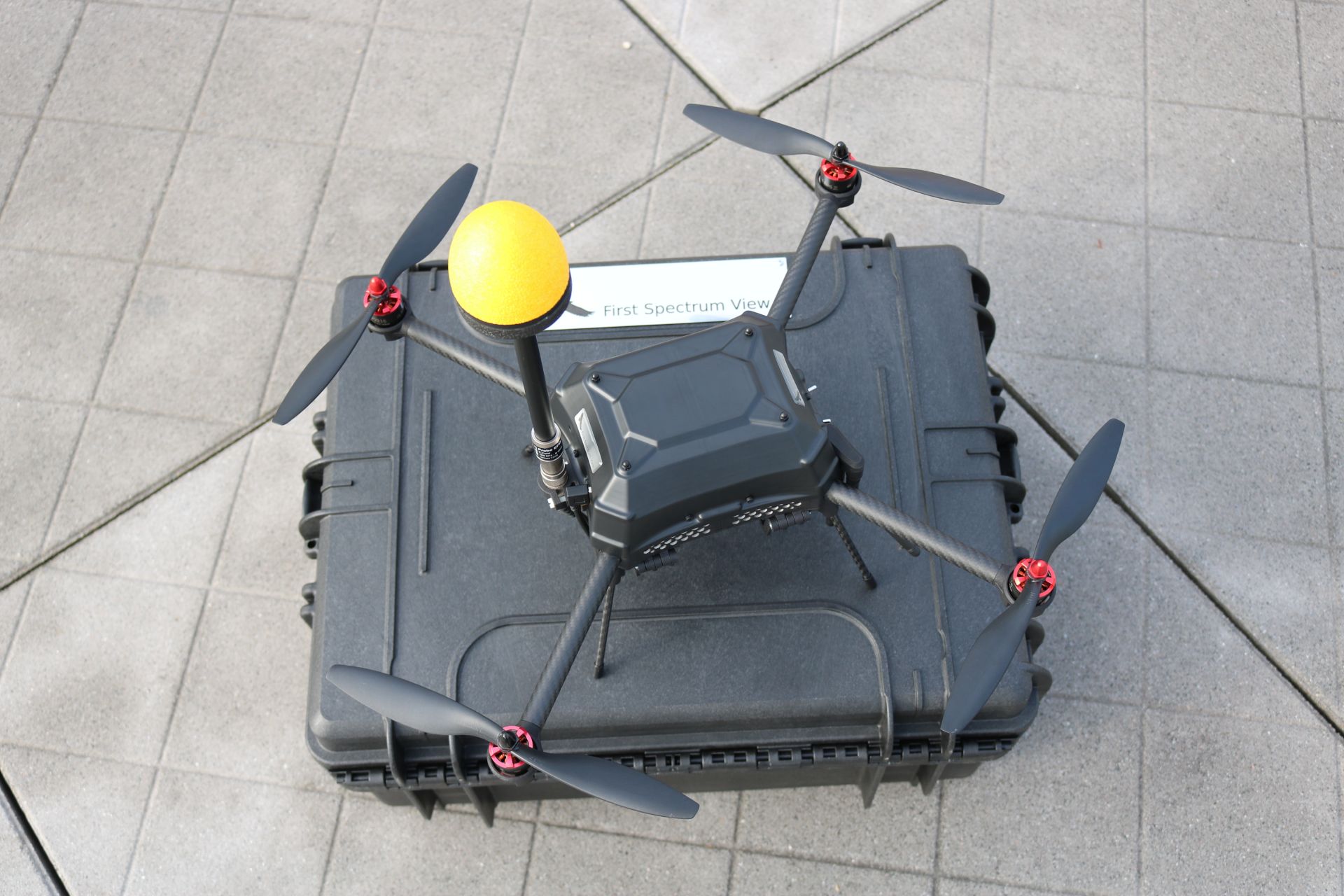

UAV:
- Type: Quadcopter
- Prop type: 1045
- Take-off weight: 2.2 kg with 2x 5Ah Battery
- Take-off weight: 1.7 kg with 2x 2.5Ah Battery
- Flight time: > 30 min with 2x 5Ah Battery
- Flight time: > 20 min with 2x 2.5Ah Battery
- Operation temperature: 10°C – 40°C
- Operation temperature: -10°C – 40°C (with optional battery heating system)
Remote Control:
- Operating frequency: 2.4 GHz
- Range: 1 km
- Operating time: > 8 h

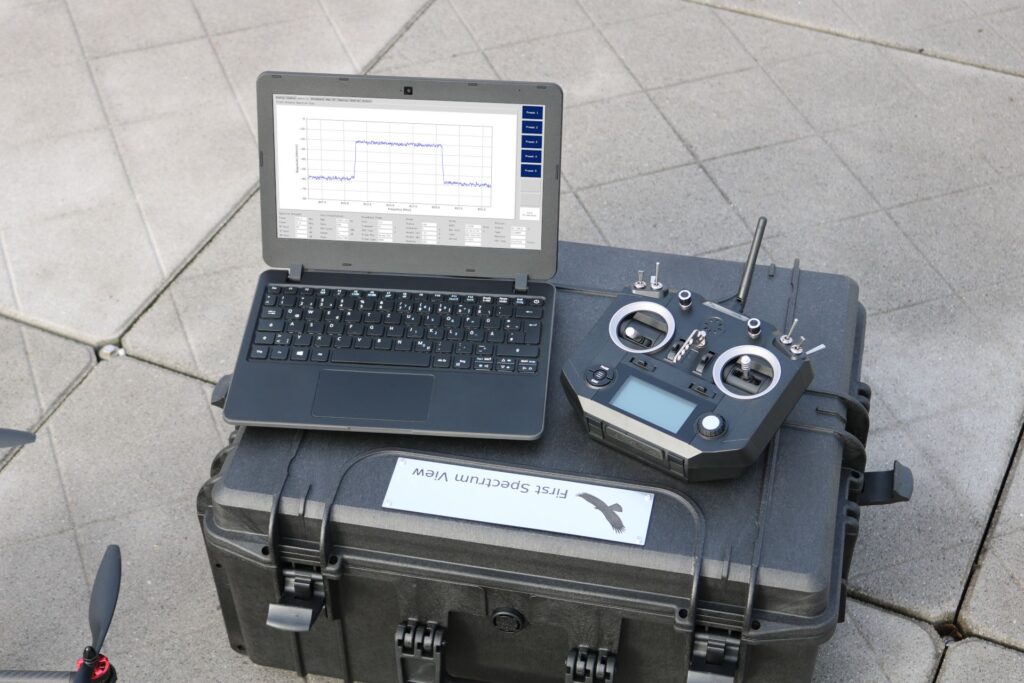

Ground Station:
- Laptop with 13″ TFT
- Operating time: > 8 h
- Intel Pentium quad core CPU
- 4 GB RAM
- 256 GB SSD
- Water and shock protected

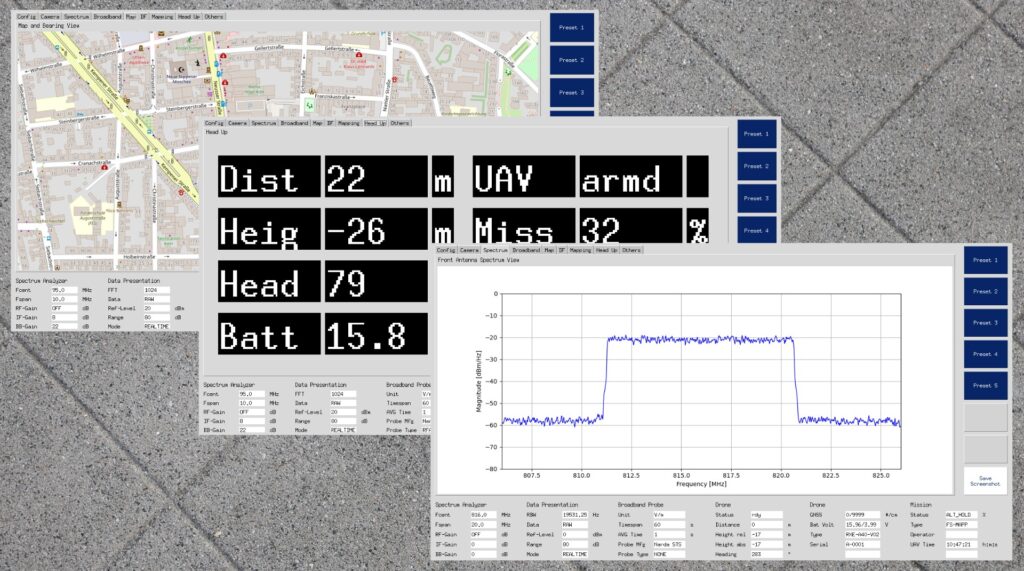

Measurement Cockpit Software:
- Measurement preparation and configuration
- First person/ Camera view
- Spectrum view
- Map/ Direction finding view
- Data management
- Antenna characterization (optional)
- RF signal mapping (optional)
- RF signal database mapping (optional)

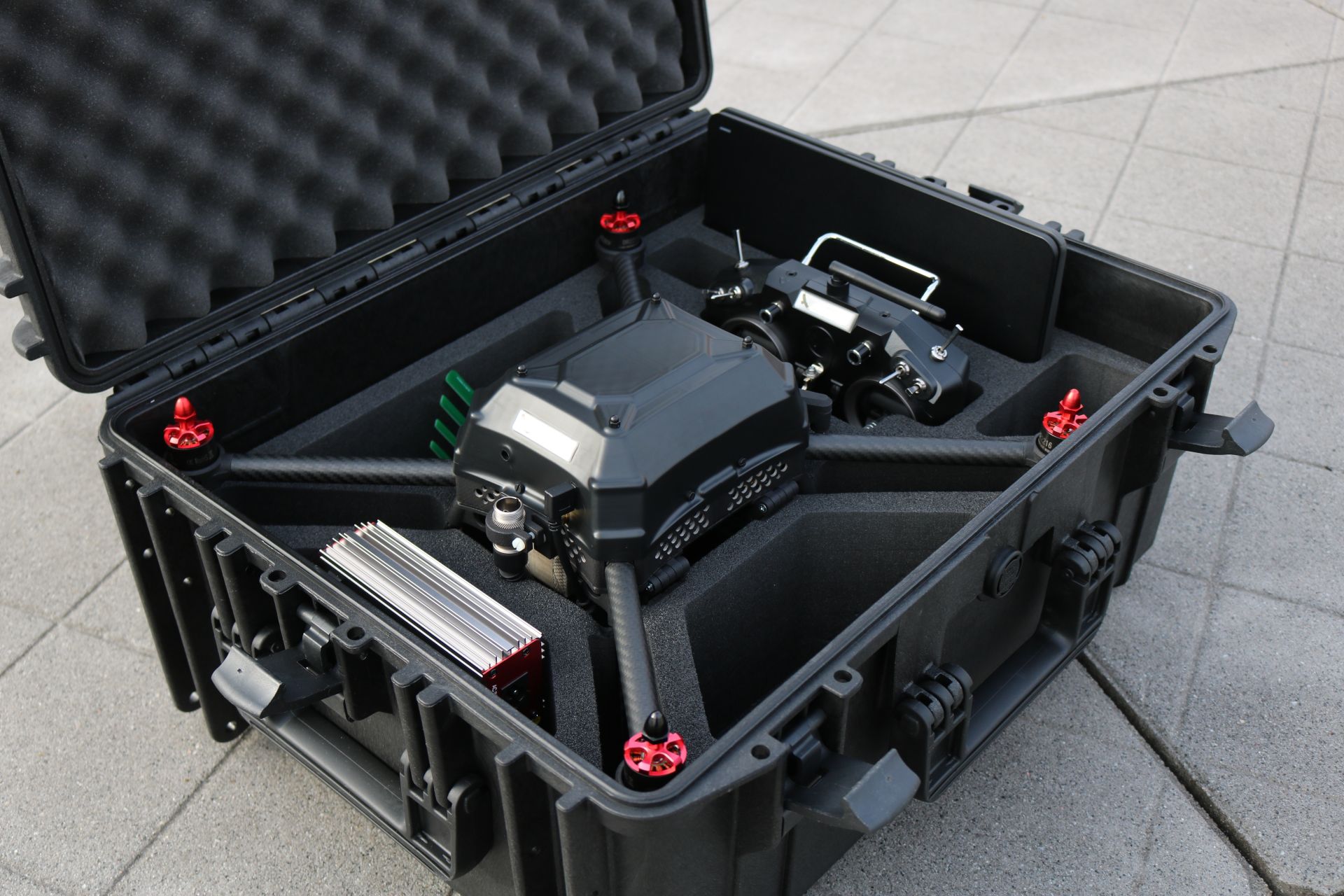

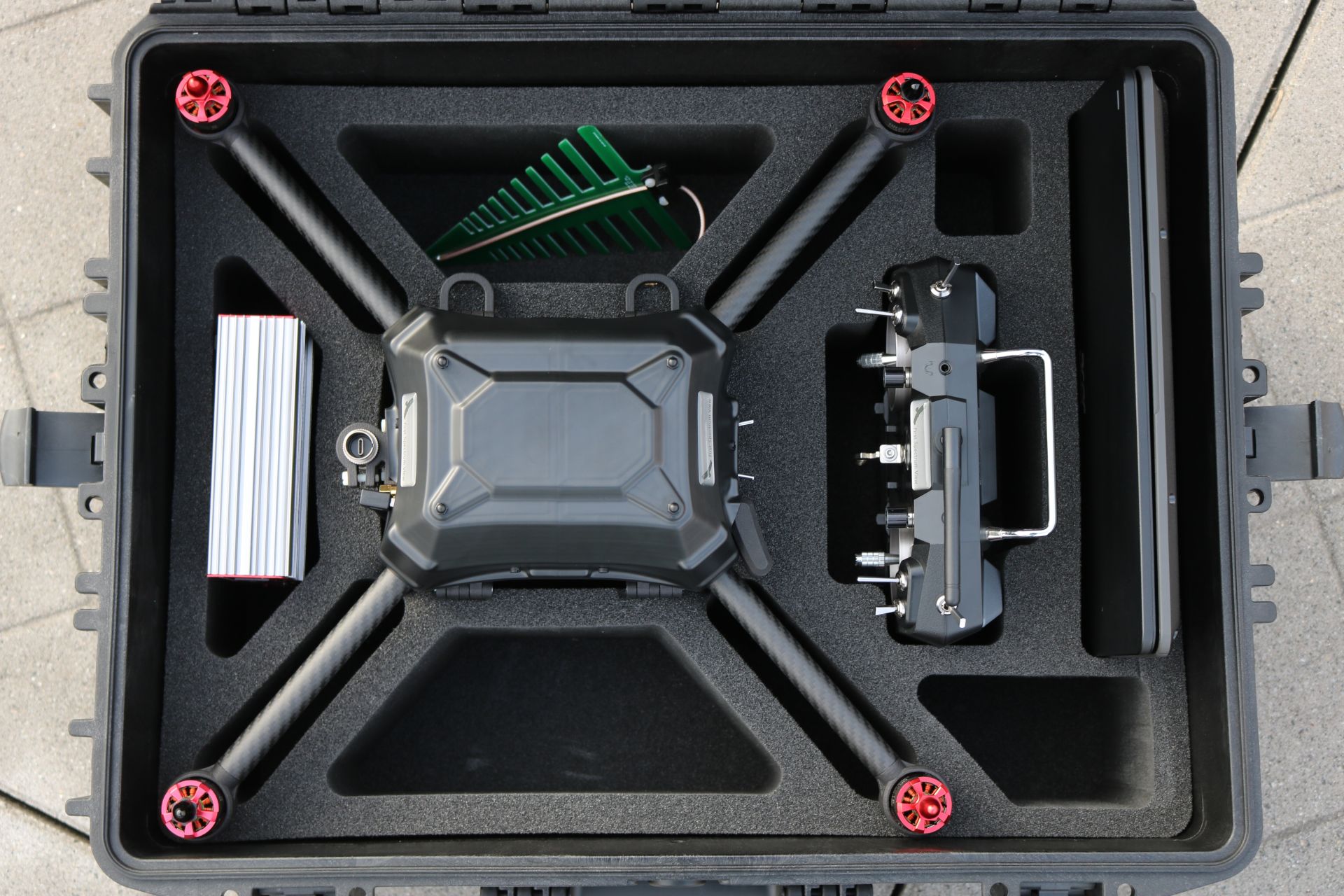

Transport Case:
- Water and dust protected
- Impact and shock protected
- Dimensions (mm): 470 x 590 x 290
- Total weight: 12 kg
- Backpack carrying system (optional)
Accessories (included):
- 8x 1045 Props
- 2x LiPo Battery 14.8V, 5 Ah
- Lipo safety bag
- Battery charger for LiPo’s
- USB charger for remote control
- All necessary cables
- Toolset
Typical Applications

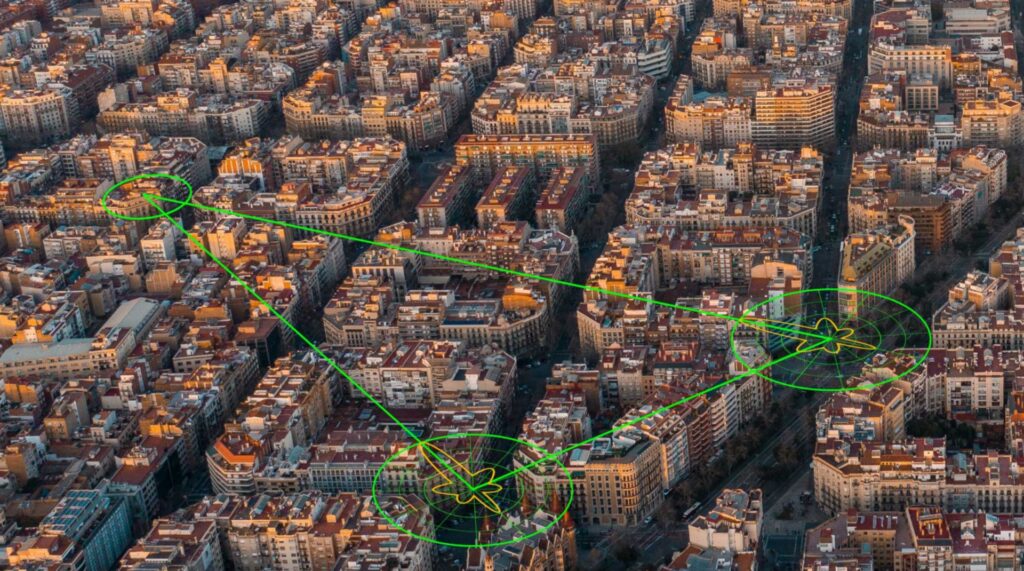

- Interference hunting

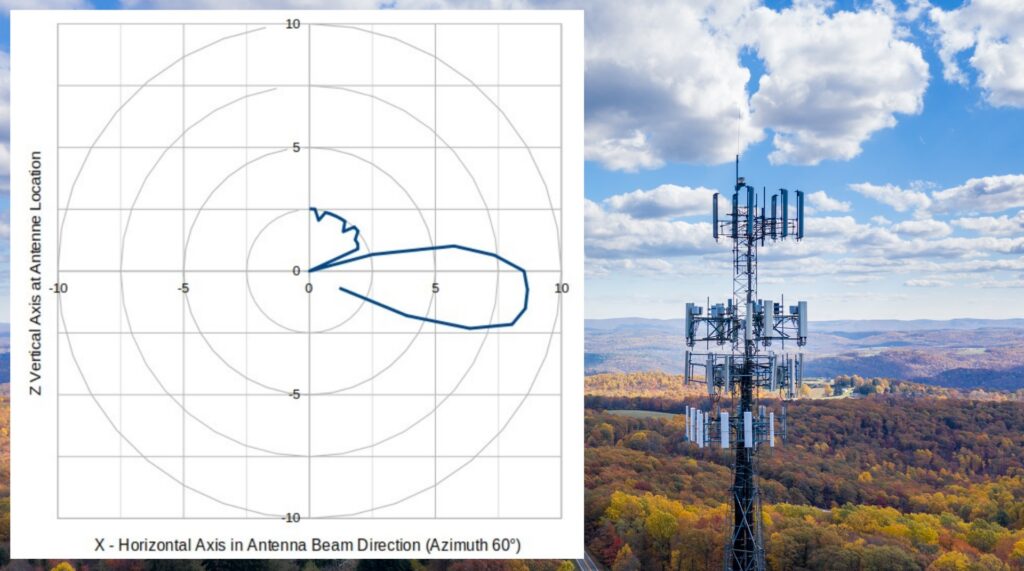

- Antenna characterization

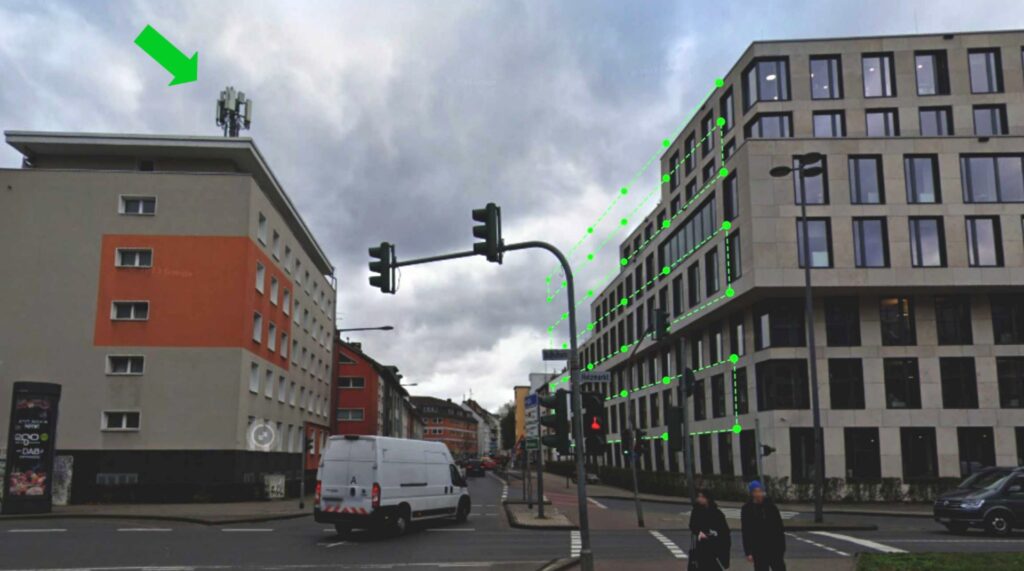

- Inspection of RF installations
- RF leakage search

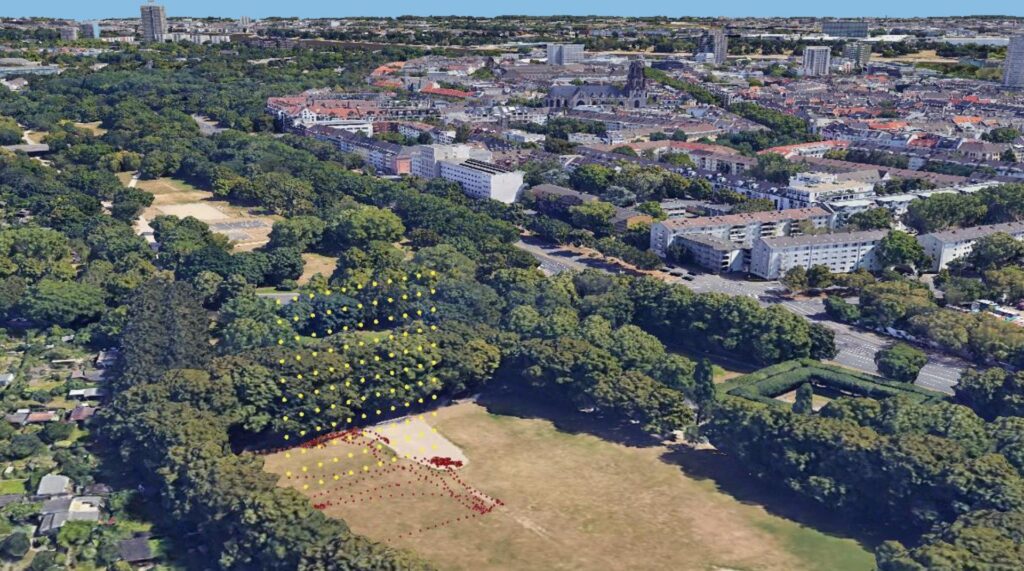

- RF signal mapping
- Radio reconnaissance
Contact
Do you have questions?
Please feel free to contact us for further information.
Price and delivery time on request.
